Can Tumbler
Description
PailPRO Can Tumbler – Industrial Paint, Chemical & Powder Mixing Machine

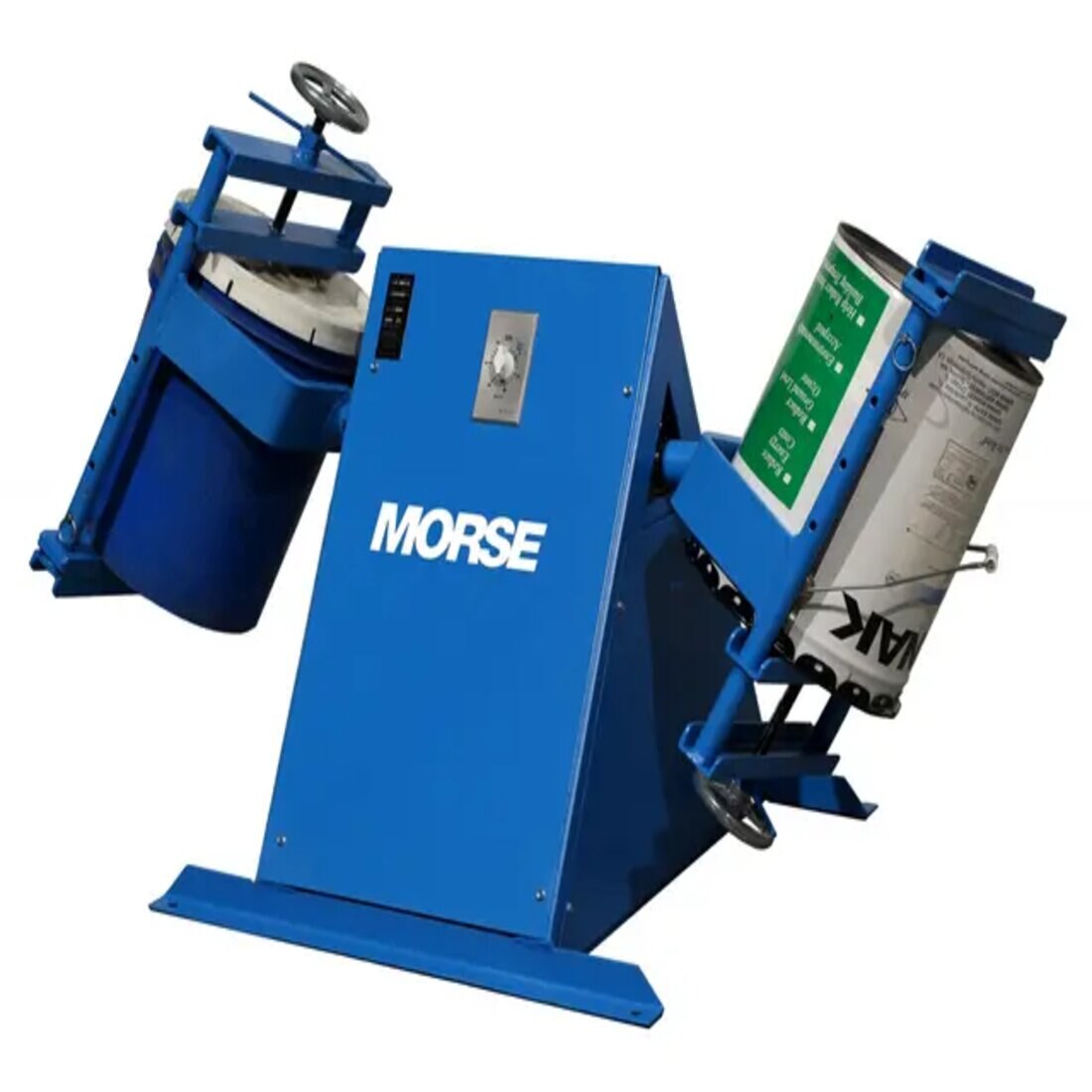

The PailPRO Can Tumbler provides efficient corner-over-corner tumbling action for mixing and re-homogenizing materials directly inside sealed cans or pails.
It is ideal for paint mixing, chemical mixing, powder blending, resin mixing and other small-batch industrial applications where maintaining product quality while minimizing spills, contamination and operator exposure is important.
Instead of transferring material to a separate mixing vessel, the original pail or can can be placed directly into the machine and securely clamped for mixing. This eliminates the need for an insertion-type mixer and reduces cleaning and product changeover requirements.
The container rotates continuously at a controlled speed, producing an effective corner-over-corner mixing action. The machine does not shake or oscillate the container, making it suitable for controlled industrial mixing applications.
Key Advantages
Mix directly inside closed cans or pails
Effective corner-over-corner tumbling action
Suitable for liquid and dry material mixing
Re-homogenizes settled or stratified ingredients
Helps reduce spills and operator exposure
No need for separate mixing containers
No mixer shaft or agitator inserted into the product
Reduces cleaning and product changeover
Ideal for small-batch production
Suitable for steel cans and plastic pails
Continuous one-direction rotation
Industrial-duty construction
Explosion-proof and air-powered options available, where required
Applications
Paint & Coating Industry
Paint mixing
Paint re-homogenization
Pigment and coating blending
Small-batch paint preparation
Industrial coating mixing
Chemical Industry
Chemical blending
Liquid chemical mixing
Powder and chemical blending
Additive mixing
Re-homogenization of settled chemicals
Automobile Industry
Automotive paint mixing
Coating preparation
Resin and adhesive mixing
Small-batch material preparation
Component finishing applications
Tire Industry
Chemical and compound preparation
Additive blending
Process-material mixing
Small-batch formulation applications
Carbide Tool Manufacturing
Powder blending
Binder/material mixing
Process-material preparation
Small-batch powder mixing
Container Handling
The standard can holder can accommodate typical 1 to 5 gallon (4–20 litre) cans and pails, including containers up to approximately 12.5 inch (317.5 mm) diameter and 4.5–16.5 inch (114–419 mm) height.
For larger containers, an Extra Large Can Holder option is available for containers up to approximately 16 inch (406 mm) diameter and 11–22 inch (279–559 mm) height.
Mixing Capacity & Speed
Container capacity: Up to 100 lb (45 kg) per can
Rotation: Approximately 23 RPM at 60 Hz
Rotation: Approximately 19 RPM at 50 Hz
Motor: 1/4 HP
Power: AC single or three phase
Options: Explosion-proof / air-powered models available
Safety-Focused Mixing
The PailPRO Can Tumbler allows material to be mixed within the original closed container, helping reduce unnecessary material handling, spills and worker exposure.

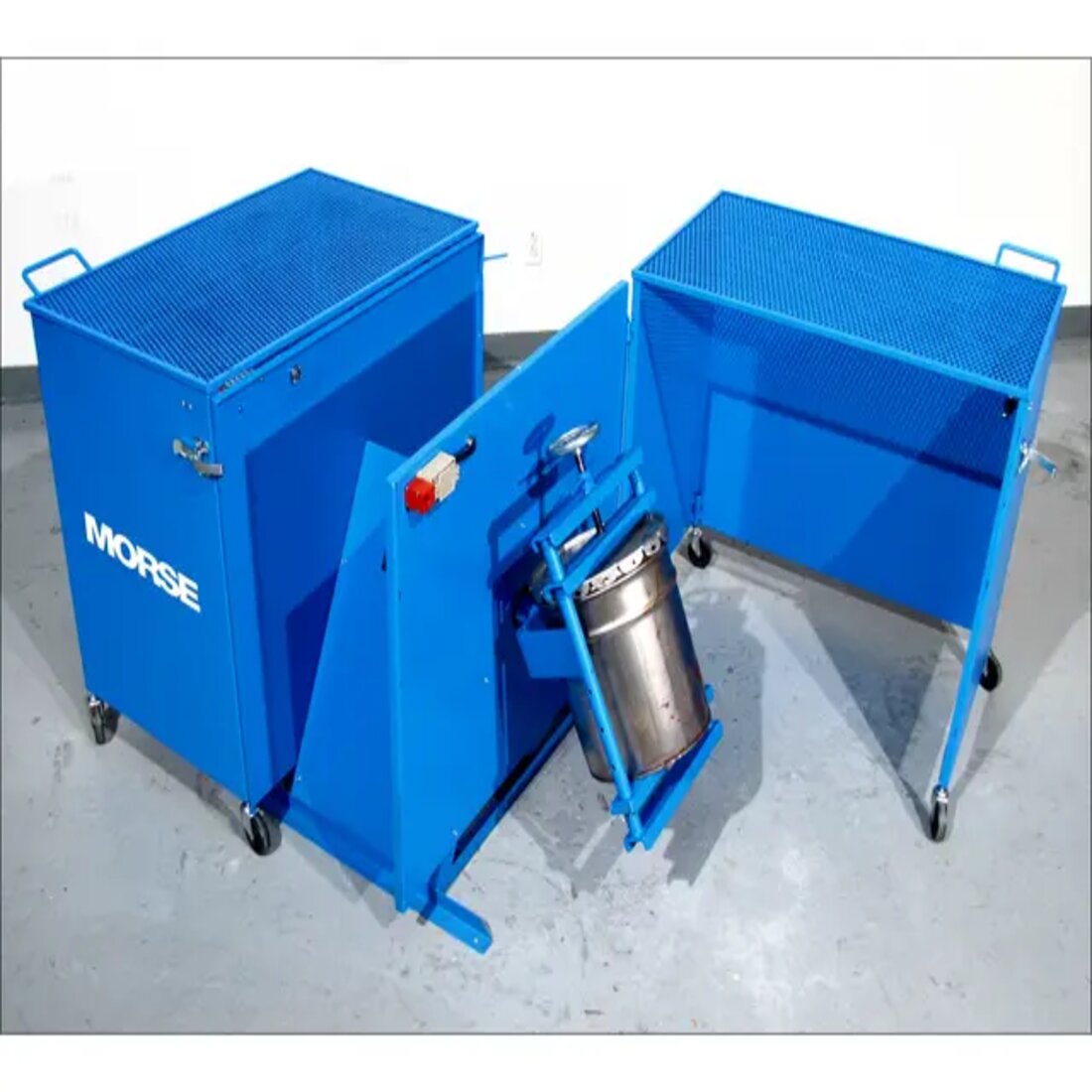

The container is securely held in the machine using an adjustable holder arrangement before rotation. For industrial installations, suitable safety guarding/enclosure and interlocking should be provided in accordance with applicable machinery-safety requirements.
Paint Industry Keywords
Paint Mixing Machine
Paint Can Mixer
Paint Pail Mixer
Paint Tumbler
Industrial Paint Mixer
Paint Rehomogenizer
Paint Blending Machine
Paint Mixing Equipment
Closed Container Paint Mixer
Automotive Paint Mixer
Chemical Industry Keywords
Chemical Mixing Machine
Chemical Pail Mixer
Chemical Can Mixer
Chemical Blending Machine
Chemical Tumbler
Industrial Chemical Mixer
Closed Container Chemical Mixer
Small Batch Chemical Mixer
Liquid Chemical Mixer
Chemical Powder Mixer
Powder & Dry Material Keywords
Powder Mixing Machine
Powder Blender
Powder Pail Mixer
Dry Powder Mixer
Dry Material Mixer
Industrial Powder Mixer
Small Batch Powder Mixer
Powder Blending Machine
Closed Container Powder Mixer
Automobile Industry Keywords
Automobile Paint Mixer
Automotive Paint Mixing Machine
Automotive Coating Mixer
Automotive Chemical Mixer
Automotive Pail Mixer
Automotive Material Mixer
Car Paint Mixing Machine
Automotive Small Batch Mixer
Tire Industry Keywords
Tire Industry Mixer
Tyre Industry Mixer
Tire Chemical Mixer
Tyre Chemical Mixer
Rubber Chemical Mixer
Tire Compound Material Mixer
Rubber Material Mixing Machine
Tire Manufacturing Mixing Equipment
Carbide Tool Industry Keywords
Carbide Tool Powder Mixer
Carbide Powder Mixer
Carbide Material Blender
Tungsten Carbide Powder Mixer
Carbide Manufacturing Mixer
Powder Mixer for Carbide Tools
Carbide Tool Manufacturing Equipment
Safety & Process Keywords
Closed Container Mixing
Closed Pail Mixing
Closed Can Mixing
Safe Chemical Mixing
Safe Paint Mixing
Spill Reduction Mixing
Low Exposure Mixing
Sealed Container Mixer
Closed Container Mixer
No Transfer Mixing
Small Batch Mixing Machine
Specifications
| Volume of drum | 5 to 20 ltr |
|---|---|
| Capacity | 45 Kg per drum |
| No of cans | 1 or 2 |
| Drum Rotation | 19 rpm |
